Muaj ntau ntau yam piv txwv ntawm hones, txawm hais tias tag nrho cov piv txwv no muaj xws li ib los yog ntau tshaj abrasive pob zeb uas tau tuav nyob rau hauv siab tiv thaiv saum npoo ntawm lubHoning Lub tog raj kheej Tubeslawv ua hauj lwm rau.
Txawm li cas los xij, muaj kev txhim kho kuj tau sau tseg rau ntawm cov npoo ntawm noHoned Tubes. Vim honing yog txheej txheem kim, honing yog ua rauHydraulic Honed Tubesuas yuav tsum tau lub feem ntau superlative degree ntawm precision. Ib qho ntawm cov txiaj ntsig tseem ceeb ntawm kev sivCi tiav ntawm kev ci caj dab honedyog hais tias lawv yog cov meej thiab muaj ib daim ntawv yog, nrog ib tug smoother sab hauv.
Specification Chart ntawm Hydraulic Honed Tubes
Kub ua tiav honing lub tog raj kheej leeg nrog Skived lossis honed bore
Muab graded: St 52
Max ntev:14m.
Metric loj: Sab hauv lub cheeb ntawm 40 txog 250 hli
Ntaus: daim duab txias
Ncaj:0.5 /1000
Tolerance INTDaim ntawv pov thawj: ISO H9
| ID m/m |
OD m/m |
Tus id m/m |
Od m/m |
ID m/m |
Od m/m |
||
| 20 | 25 | 60 | 70 | 80 | 100 | ||
| 20 | 30 | 60 | 80 | 90 | 105 | ||
| 25 | 30 | 63 | 73 | 95 | 110 | ||
| 25 | 35 | 65 | 75 | 100 | 114 | ||
| 30 | 40 | 70 | 80 | 110 | 120 | ||
| 35 | 45 | 70 | 90 | 120 | 140 | ||
| 40 | 50 | 80 | 90 | 125 | 140 | ||
| 50 | 60 | 80 | 95 |
Feem ntau nto moo hom Honed Tubes
Hydraulic Honed Tubes
Honed Leeg
Kev Ua Si Ntawm Hydraulic
Honing Lub Tog Raj Kheej Hlab
Ua ntej honed raj
Npaj txhij rau honed raj
Honed Seamless Tubes
Ci tiav ntawm kev ci caj dab honed
HYDRAULIC KHEEJ KHEEJ HONED RAJ
Hydraulic Tubes Khoom Standards
| Peb Cov Khoom Siv | Tsis muaj khoom siv. | Similar International Qib | Haum rau ... |
|
JIS G3445 STKM13C |
ASTM MT1020 / BS ERWC3 / DIN ST45 / NF TU37b / ISO TS4 | Carbon Steel Leeg Rau Tshuab Cov Qauv Txheej Txheem | |
| TIAB SA 2391 ST52 | 1.0580 |
JIS STKM19A / ASTM 1524 / EN E355 / ISO TS18 | NEEG KHO TSHUAB THIAB COV ANCHIVE ENGENTER |
| ST52 BK + S | 1.0580 | Tsawg deformity yam tsis muaj kev kho cua sov tom qab tsim kev txias thiab kev ntxhov siab-nyem annaling | |
| DIN 2393 ST52.3 | 1.0570 | ISO Gr.1 | Kev tsim kho cov nroj tsuag tshuaj, cov yeeb nkab ua haujlwm thiab kev siv tshuab engineering |
| ASTM A106 1 | 1.0405 | Jis Stpt410 / BS HFS410 / DIN ST45.8 / NF Tu42C | Seamless carbon steel yeeb nkab rau kev pabcuam kub Haum rau dabtsi yog khoov, flanging, vuam thiab sib zog ua haujlwm |
Honing Lub Tog Raj Kheej Cov Qauv Ua Haujlwm
Wored honed raj & hydraulic lub tog hydraulic rods exporter hauv Is Nrias teb
DIN 2391 Seamless Promison Tube
EN10305 Steel Tubes rau Precision Applications Seamless Cold Drawn Tubes
ASTM A519 Txuj Specification rau Seamless Carbon thiab Alloy Steel Mechanical Tubing
JIS G3445 Carbon Steel Tubes rau Tshuab Lub Hom Phiaj
Ua Ntej Honed Raj Raj Steel Grades
ST52 ST45 E 355 1020 1026
Npaj kom txhij cov raj khoom lag luam
Cov ntaub ntawv nyoos- Txias rub / dov- Kev kho cua sov (BKS)- Honed - ntim.
| Txoj Kev | Lub tog raj kheej Barrel ID (mm) | Max Length (mtr) | Txoj Cai Ncaj Ncees (MM / MTR) | ID kam rau ua | Phab Ntsa Thickness kam Zam (Mm) | Id roughness (μm) |
| Txias Drawn | 40-320 | 12 | 0.2-0.5 | H8-H10 | ±5% | 0.8-1.6 |
| Cold Rolled | 12-100 | 12 | 0.2-0.5 | H8-H10 | ±5% | 0.8-1.2 |
| Txias Drawn + Honed | 40-500 | 8 | 0.2-0.3 | H7-H9 | ±5% | 0.2-0.8 |
| Txias Drawn-Srb | 40-400 | 7 | 0.2-0.3 | H8-H9 | ± 5% | 0.2-0.4 |
| Lub Diab Diab Drilling-Honed | 320-1100 | 8 | 0.2-0.3 | H7-H9 | ±8% | 0.2-0.8 |
| Tob tob drilling-srb | 320-600 | 7 | 0.2-0.3 | H8-H9 | ±8% | 0.2-0.4 |

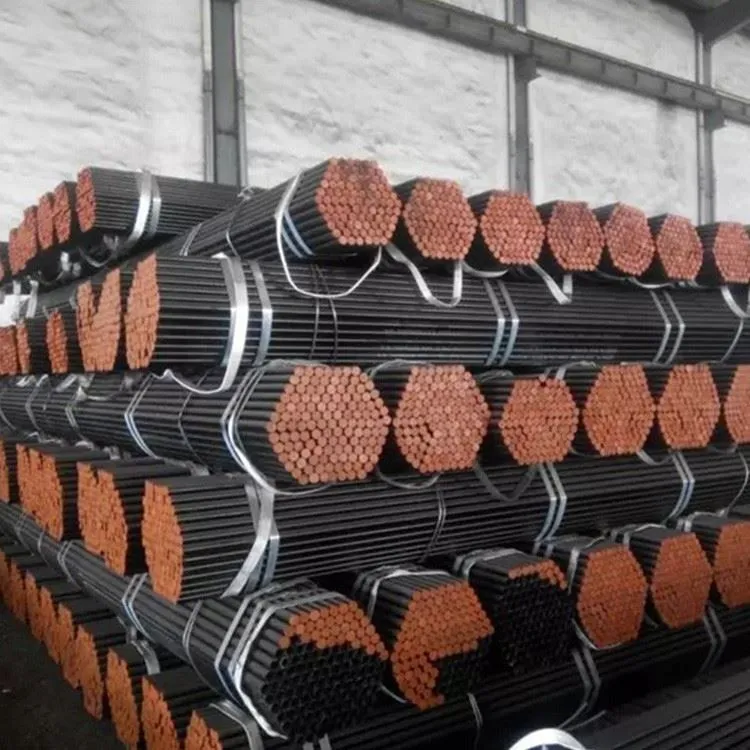

Cim npe nrov: Jis Stkm 13C / astm A106 / SAE 1020 / DIN ST 52 WELTM A102 WELE 1020 / SAE 1020 / DIN
