Pad Mounted Transformer
-

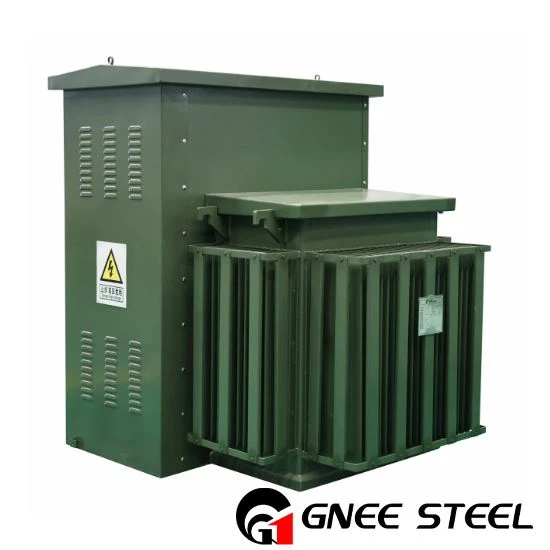

![Peb Theem Pad Mounted Transformers]()
Peb Theem Pad Mounted TransformersLub 3 theem ncoo-mounted transformer yog transformer tsim nrog ib tug tag nrho cov qauv. Qhov kev teeb tsa ntawm lub dab dej kub uas tuaj yeem cuam tshuam ncaj qha tshav kub mus rau sab nraud ua...Ntau -
![Ib Theem Pad Mounted Transformer]()
Ib Theem Pad Mounted TransformerPad-mounted transformers yog tsim nyob rau hauv lub zog ntsuas los ntawm ib ncig ntawm 15 mus rau ib ncig ntawm 5000 kVA thiab feem ntau suav nrog ua - hauv fuses thiab keyboards. Cov kab hluav...Ntau -
![2000 KVA Pad Mounted Transformer]()
2000 KVA Pad Mounted Transformer2000 kVA ncoo-mounted transformer raws li ANSI, CSA, NEMA, IEEE, DOE, thiab lwm yam qauv. GNEE 2000 kVA ncoo-mount transformers tau raws li DOE efficiency qhov tseem ceeb nrog UL teev.2000kva...Ntau -
![167 KVA Ib Theem Pad Mounted Transformer]()
167 KVA Ib Theem Pad Mounted TransformerGNEE 167 kVA ncoo mounted transformer ntsib / tshaj DOE 2016 kev ntsuas kev ua haujlwm nrog UL / cUL teev. GNEE Transformer, tus neeg muag khoom sib txawv thiab cov chaw tsim khoom nrog UL daim...Ntau -
![Padmount Liquid Filled Transformers]()
Padmount Liquid Filled TransformersPadmount Liquid Filled Transformers Rau siv nyob rau hauv underground power distribution systems.Ntau -
![750 Kva Pad Mounted Transformer]()
750 Kva Pad Mounted TransformerThawj qhov Voltage: 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2 los yog lwm yamNtau
Secondary Voltage Ratings: 208GrdY / 120; 416GrdY / 240,480GrdY / 277, / 600GrdY / 347,220y / 127,480V, 415v, 600v... -
![2000 Kva Pad Mount Transformer]()
2000 Kva Pad Mount TransformerLub 2000 kVA ncoo-mounted transformer ua raws li ANSI, CSA, NEMA, IEEE, DOE thiab lwm yam qauv, ua tau raws li DOE efficiency qhov tseem ceeb thiab yog UL ntawv pov thawj.Ntau -
![750 Kva ~ 2500 Kva 3 Phase Pad -mounted Transformer]()
750 Kva ~ 2500 Kva 3 Phase Pad -mounted Transformer750 kva ~ 2500 kva 3 theem ncoo- mounted transformer yog ib qho ua tiav ntawm substation thiab cov khoom siv faib khoom uas sib txuas ua ke transformer, ib qho kev hloov pauv thiab cov cuab yeej...Ntau -
![50 KVA Pad Mount Distribution Transformer]()
50 KVA Pad Mount Distribution TransformerGNEE ib leeg thiab peb -theem ncoo- mounted transformers muaj zog, vam khom, thiab tsim nrog ib puag ncig hauv siab. Nrog rau kev muaj peev xwm ua haujlwm sab hauv tsev thiab sab nraum zoov, cov...Ntau -
![500 KVA Pad Mount Peb -Phase Roj-Immered Distribution Transformer]()
500 KVA Pad Mount Peb -Phase Roj-Immered Distribution Tra...Cua txias hom: ONAN / KNANNtau
Thawj Voltage: 2,400 - 46,000 V
Secondary Voltage: 208Y / 120V txog 14,400V
Zaus: 60 Hz -
![Padmount Transformers]()
Padmount TransformersKev nyab xeeb ntawm padmount transformers ua rau lawv muaj kev xaiv rau kev siv tau rau pej xeem kev teeb tsa lossis txhua qhov xwm txheej uas xav tau nyob hauv av.Ntau -
![Peb-phase Pad-mounted Transformer]()
Peb-phase Pad-mounted TransformerGNEE's Cooper Power series peb -theem ncoo- mounted transformers yog compact fais fab chaw rau kev siv hluav taws xob, kev lag luam lossis kev lag luam, tsim los tiv thaiv ntau hom kev ib puag ncig.Ntau
Khoom Taw Qhia
Kev ua haujlwm siab thiab poob qis
High - cov ntaub ntawv zoo thiab kev tsim khoom:Siv cov ntawv zoo silicon steel (xws li cov lus qhia silicon steel) thiab cov thev naus laus zis siab tshaj plaws (piv txwv li, ntawv ci winding lossis helical winding) kom tsis txhob muaj -load poob (hlau poob) thiab load poob (tooj liab).
Zog -Txuag Tsim
Tsim los ua raws li cov qauv kev siv hluav taws xob thoob ntiaj teb.
Kev ua tau zoo ntawm qee cov qauv tuaj yeem tshaj 99%, txo qhov ntev - cov nqi khiav lag luam.
Adaptability rau Complex Power Grids
Txoj cai dav dav:Txhawb nqa ntawm -load kais hloov pauv (OLTC) lossis tsis muaj - kev tswj hwm qhov hluav taws xob kom haum rau ntau qhov kev hloov pauv ntawm qhov hluav taws xob.
Harmonic suppression:Cov qauv tsim tshwj xeeb winding (xws li Dyn11 kev sib txuas pab pawg) yog siv los txwv kev sib raug zoo thib peb, kom ntseeg tau tias muaj kev sib raug zoo nrog cov khoom siv hluav taws xob txuas ntxiv xws li photovoltaics thiab cua zog.
Luv-circuit endurance:Luv -Kev ntsuas hluav taws xob thiab kev tsim kho impedance zoo pab txo qhov cuam tshuam ntawm qhov tsis raug tam sim no.
Customization thiab Kev Siv Hauv Ntiaj Teb
Flexible design options:Customizable capacities (los ntawm 10 kVA mus rau 1000 MVA), voltage theem (txog ± 1100 kV ultra-} high voltage), thiab cov yam ntxwv tshwj xeeb (xws li, ntsev tsuag tshuaj tiv thaiv, tawg- pov thawj tiv thaiv) tuaj yeem tsim kom tau raws li cov neeg siv khoom xav tau.
|
Tachnical Cov ntaub ntawv rau Peb Theem Pad Mounted Transformer |
||||||
|
Rated zog (KVA) |
Loss (W) |
Qhov Loj (mm) |
||||
|
Tsis muaj -load poob (W) |
Ntawm -load Loss (W) |
W |
D |
H |
Qhov hnyav (kg) |
|
|
75 kVA ua |
180 |
1250 |
1390 |
910 |
1430 |
645 |
|
150 KVA UAS |
280 |
2200 |
1510 |
980 |
1530 |
989 |
|
300 KVA ua |
480 |
3650 |
1660 |
1080 |
1680 |
1415 |
|
500KVA ua |
680 |
5100 |
1810 |
1160 |
1790 |
1905 |
|
750KVA ua |
980 |
7500 |
2030 |
1300 |
2030 |
2755 |
|
1000KVA ua |
1150 |
10300 |
1651 |
1549 |
1854 |
3235 |
|
1500KVA ua |
1640 |
14500 |
2210 |
1470 |
2150 |
5835 |
|
2000KVA ua |
2160 |
20645 |
2380 |
1600 |
2220 |
6430 |
|
2500KVA ua |
2680 |
27786 |
3070 |
1650 |
2330 |
8865 |
|
3000KVA ua |
3300 |
30300 |
3260 |
1850 |
2460 |
11300 |
|
3750 kVA ua |
4125 |
37875 |
4080 |
2060 |
2680 |
14400 |
1. Tsim los ntawm patented technology thiab software nrog hwm kev ua tau zoo.
2. Cov tub ntxhais yog ua los ntawm cov khoom txias txias-rolled grain-taw qhia txog silicon steel ntawv uas ua nyob rau hauv kauj ruam- lap technology.
3. Winding yog siv lub zog siab enameled hlau los yog ntawv- insulated hlau los yog tooj liab txoj siv, uas muaj cov yam ntxwv faib ntawm ampere - tig, tsim nyog rwb thaiv tsev qauv nrog siab muaj peev xwm tiv taus luv luv -circuit.
4. Roj tank yog hom corrugated nrog siab corrosion kuj. Tank nto ua ntej-kua kua thiab txheej hmoov siv thoob ntiaj teb cov npe saum toj kawg nkaus. Lub tank yog degreasing, pickling, phosphorated, electrophoresis los ntawm tsis siv neeg ntau lawm kab, ces lub hwj chim tshuaj tsuag txheej thiab cua sov-solidify.
5. Qhov chaw nquag siv cov tub ntxhais tsis pub dawb - dai qauv. Lub gasket yog ua los ntawm siab -cov roj hmab acrylate zoo uas tuaj yeem tiv thaiv kev laus los ntawm lub hnub thiab cua sov.
Cov Cheebtsam
Tank
Lub plhaub sab nraud uas tsev tag nrho cov khoom sab hauv.
Core
Feem ntau yog ua los ntawm laminated steel los xij.
Cua txias
Primary Winding thiab Secondary Winding.
Rwb thaiv tsev
Txhawm rau tiv thaiv hluav taws xob conductivity ntawm windings thiab cov tub ntxhais, thiab tig ntawm windings.
Radiators / Kub Exchangers
Txhawm rau pab kom muaj cua sov dissipation hauv cov roj- puv transformers.
Bushing
Tswj kev cais hluav taws xob.
Coj mus rhaub Changer
Ua kom muaj zog ruaj khov txawm tias muaj kev hloov pauv hauv kev thauj khoom lossis cov khoom siv hluav taws xob.
Ua pa
Tswj kom tau txais huab cua thaum cov roj theem nthuav dav thiab sib cog lus vim qhov kub hloov pauv rau roj transformer.
Mounting Kho vajtse
Bolts, brackets, thiab lwm yam khoom siv los tiv thaiv lub transformer rau nws cov pob zeb ua vaj tse.
1. Ambient kub:Qhov siab tshaj plaws +40ºC, Yam tsawg kawg -40ºC
2. Qhov siab:les Lehan 1000 m.
3. Qib Seismic:tsawg dua 3m / s2 ntawm kab rov tav kev taw qhia thiab tsawg dua 1.5m / s2 ntawm ntsug kev taw qhia.
4. Kev teeb tsa ib puag ncig:Tsis muaj qhov pom tseeb thiab hnyav hnyav, tsis muaj qhov tawg thiab corrosive gas thiab plua plav, nrog rau qhov cua zoo thiab tsis muaj kev vibration hnyav thiab poob siab.
(Nco tseg:Yog tias daim ntawv thov ib puag ncig txawv ntawm cov txheej txheem saum toj no, thov hu rau cov qauv tsim kho.)
-Kev ntsuas ntawm winding resistance
-Kev ntsuas qhov sib piv ntawm qhov hluav taws xob thiab xyuas cov theem hloov pauv
-Kev ntsuas luv luv- Circuit Court impedance thiab poob
-Kev ntsuas tsis muaj-load poob thiab tam sim no
-Kev ntsuas dielectric niaj hnub
-Kev ntsuam xyuas ntawm -load kais - hloov pauv, qhov tsim nyog
-Kev kuaj pom nrog lub siab rau cov kua-immersed transformers(tightness test)
-Kev ntsuas nruj thiab kev ntsuas siab rau lub tank rau cov pa roj- puv transformers
-Kuaj xyuas qhov piv thiab polarity ntawm kev tsim- nyob rau hauv tam sim no transformers
- Tshawb xyuas cov tub ntxhais thiab cov ncej rwb thaiv tsev rau cov kua immersed transformers nrog core lossis ncej rwb thaiv tsev
Hom kev xeem
Kub-nce hom kev ntsuas
Dielectric hom kev xeem
Kev txiav txim siab ntawm qib suab rau txhua txoj kev ua kom txias rau qhov kev lees paub lub suab tau teev tseg
Kev ntsuas lub zog coj los ntawm cov kiv cua thiab cov twj tso kua mis ua kua
Kev ntsuas tsis muaj -load poob thiab tam sim no ntawm 90% thiab 110% ntawm qhov ntsuas hluav taws xob
Kev kuaj tshwj xeeb
-Kev kuaj tshwj xeeb Dielectric
-Winding kub- qhov kub thiab txias- nce ntsuas
-Kev txiav txim siab ntawm lub peev xwm windings- rau - ntiaj teb, thiab nruab nrab ntawm windings
-Kev ntsuas ntawm qhov cuam tshuam dissipation (tanδ) ntawm lub rwb thaiv tsev capacitances
-Kev txiav txim siab ntawm qhov hloov pauv hloov pauv hloov pauv yam ntxwv
-Kev ntsuas xoom-ib ntu impedance(s) ntawm peb-theem transformers
- luv -circuit withstand test
-Kev ntsuas ntawm dc rwb thaiv tsev tiv thaiv txhua qhov cua rau lub ntiaj teb thiab nruab nrab ntawm windings
-Nqus deflection kuaj ntawm cov kua immersed transformers
-Kev ntsuas siab deflection ntawm cov kua immersed transformers
-Lub tshuab nqus tsev ntsuas qhov ntsuas ntawm qhov chaw ntawm cov kua immersed transformers
Daim ntawv pov thawj
FAQ
Peb nyob nraum kev pad mounted transformer manufacturers thiab lwm tus neeg nyob hauv Suav teb, tshwj xeeb hauv kev muab cov kev pabcuam zoo. Peb sov siab txais tos koj mus yuav pheej yig pad mounted transformer rau muag ntawm no thiab tau txais cov qauv dawb los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.
