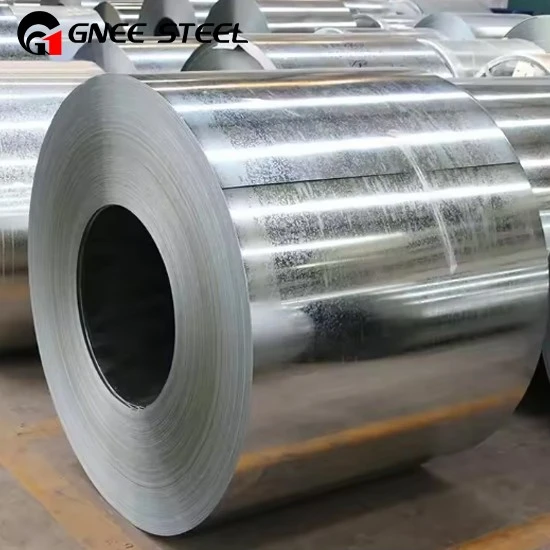

Galvalume steel coils tseem hu ua Al-Zn coated steel coils. Nws yog ib daim ntawv carbon steel coated nrog txhuas-zinc alloy los ntawm kev kub ceev-dip. Cov txheej txheem txheej txheem yog 55% txhuas, 43.5% zinc thiab 1.5% silicon. Cov txheej no sib xyaw ua ke zoo tshaj corrosion kuj ntawm txhuas thiab galvanic tiv thaiv ntawm zinc.
Vim qhov tshwj xeeb alloy txheej,Galvalume steel kaujmuaj zoo heev corrosion kuj, tshav kub tsis kam, huab cua tsis kam thiab kev pab lub neej ntev. Nws tuaj yeem kav 25-30 xyoo yam tsis muaj xim tseem ceeb fading lossis perforation. Qhov kev ua tau zoo tshaj plaws no ua rau nws zoo tagnrho rau kev siv lub ru tsev sab nraum zoov thiab phab ntsa nrog cov chaw hnyav xws li cov tsev lag luam, warehouses, barns, thiab lwm yam.
Ntxiv rau qhov zoo tshaj plaws los tiv thaiv- cov khoom corrosion, Galvalume steel kauj kuj muaj qhov ci ntsa iab thiab zoo li spangle, nrog rau cov xim zoo nkauj thiab kev tsim kho. Nws tuaj yeem pleev xim rau hauv ntau xim kom phim cov qauv vaj tsev sib txawv. Thiab nws tseem tuaj yeem txias - ua rau ntau qhov profile raws li cov kev xav tau tshwj xeeb.
Khoom Parameters
|
Khoom npe |
Galvalume Steel Coils |
|
Thickness |
0.12mm-6.00 hli |
|
Dav |
600mm-1500mm |
|
Ntev |
1m-12m, Kev them nyiaj yug Customization |
|
Txuj |
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, thiab lwm yam. |
|
Thickness ntawm Aluminium Zinc Txheej |
30-185g/m² |
|
Cov ntsiab lus ntawm Al-Zn Txheej |
Al: 55%, Zn: 43.5%, Si: 1.5% |
Tshuaj muaj pes tsawg leeg
|
Al |
Zn |
Si |
Fe |
Cu |
Cd |
Pb |
Sn |
Ni |
Kaw Cr |
|
55-58 |
41-43 |
1.5-2 |
0.25 |
0.03 |
0.05 |
0.01 |
0.05 |
0.05 |
0.05 |
|
Hom Txheej Txheej |
Pom zoo txheej hnyav |
|
Aluminium-zinc Alloy |
30/40/50/60/75/90/100/150 |
|
A: Txheej zoo 50g / ㎡, kwv yees li qhov sib npaug ntawm cov txheej thickness 13.3pm |
|
|
Qhov project |
Kev faib tawm |
Cim |
|
Hom Txheej Txheej |
Aluminium-zinc Alloy |
AZ |
|
Nto tiav |
Conventional Sequins |
R |
|
Minimize Sequins |
M |
|
|
Daim tawv nqaij dhau |
S |
|
|
Kev kho saum npoo |
Chromate Passivation |
c |
|
Tsis yog -chromate Passivation |
C5 |
|
|
Chromate Passivationoiling |
CO |
|
|
Chromium{0}}dawb Passivationoiling |
CO5 |
|
|
Anti- ntiv tes |
N |
|
|
Chromate -dawb / Anti- ntiv tes |
N5 |
|
|
Tsis muaj chromate siab huab cua tiv thaiv ntiv tes |
NW |
|
|
Roj puv |
0 |
|
|
Tsis kho |
U |
Galvalume steel kauj
galvalume steel kauj nta
GL yog 3 ~ 6 npaug ntau dua corrosion - resistant piv rau GI, tab sis muaj ib tug zoo xws li theem ntawm processability thiab weldability thiab hloov GI, thiab tshwj xeeb tshaj yog tsim nyog thaum hloov GI uas yuav tsum tau tuab galvanized txheej thiab siab corrosion kuj.
Tsuas yoggalvanized steel ntawvuas yog siv rau vov tsev thiab phab ntsa tsis muaj tha xim vim nws cov nyiaj spangles tshwj xeeb thiab zoo nkauj tsos thiab siab - corrosion tsis kam, thiab yog siv los ua cov khoom siv vov tsev txias vim nws cov khoom zoo heev thaum tshav kub kub zoo.
tuaj yeem hloov cov ntawv txhuas gilded steel vim rau qee lub hom phiaj ntawm nws cov hluav taws xob conductivity thiab nws cov cua sov-kev ua haujlwm zoo txawm tias qhov kub thiab txias tsis tshaj 315 degree.
Muaj qhov tawv tawv ntau dua li GIs, thiab hnav ntau dua - resistant .
Corrosion kuj nce ntxiv nrog cov resin-txheej txheej, uas ua rau yob txoj kev los yog xovxwm tsim yam tsis muaj tshuaj tsuag ntawm cov txheej txheem coils .
Galvalume coil daim ntawv thov teb
