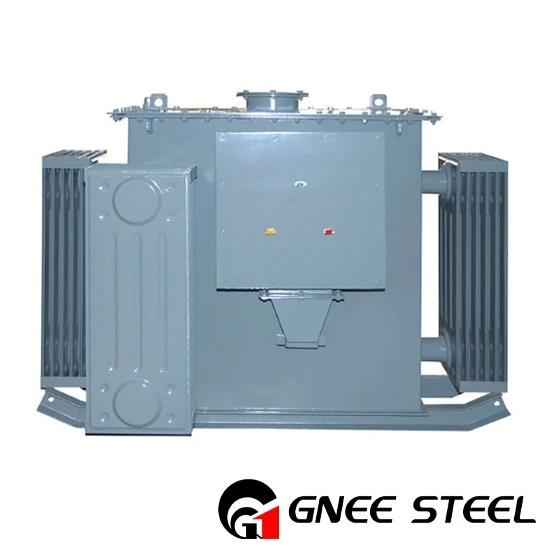

500 Kva Ncej Mounted Transformer

* Cov tub ntxhais transformer yog ua los ntawm cov khoom lag luam siab - zoo txias- cov ntawv silicon steel, uas txo qis tsis muaj -load poob thiab tsis muaj -load tam sim no. Cov tub ntxhais yog nruj nreem khi kom ntseeg tau lub compactness thiab txo cov suab nrov.
* Qhov siab thiab qis hluav taws xob windings yog ua los ntawm oxygen - dawb tooj liab. Qhov qis voltage winding ntawm 500KVA thiab hauv qab no yog ob - txheej lub tog raj kheej qauv, ntawm 630kVA thiab saum toj no txais yuav ob lub helix lossis plaub helix qauv. High-voltage winding txais ntau- txheej lub tog raj kheej qauv.
* Dyn11 yog siv nyob rau hauv lub transformer kev twb kev txuas pab pawg neeg kom txo tau lub zog ntawm harmonics nyob rau hauv lub hwj chim daim phiaj thiab txhim kho qhov zoo ntawm lub hwj chim mov.

siv ncej mount transformers

I. Txo Tsis Tau-Load Losses

(1) Siv siab -kev ua tau zoo silicon steel los yog amorphous alloy strips thiab kauj ruam ceg pob qij txha.

(2) Txhim kho cov txheej txheem hlau thiab cov txheej txheem tsim khoom kom txo cov txheej txheem coefficient.

(3) Tsis txhob muab cov hlua khi hlau, tsis txhob pleev xim silicon steel strips, thiab tswj shearing burrs kom tsawg dua 0.02mm.

II. Txo Load Losses

(1) Siv cov pa oxygen-dawb tooj liab hlau rods uas muaj hluav taws xob ntau dua li electrolytic tooj liab los txhim kho cov hluav taws xob conductivity coefficient.

(2) Txo qhov ceev tam sim no kom tsim nyog, txhim kho cov txheej txheem rwb thaiv tsev, siv ib nrab roj ducts, prefabricated rwb thaiv tsev Cheebtsam, ua tiav winding transposition, ib qho tseem ceeb winding ntim, tus kheej - nplaum hlau thiab ntawv, txo cov rwb thaiv tsev ntim, nce winding filling factor, thiab txo qis winding qhov ntev los ntawm optimized tsim.

III. Txo qhov poob hauv Lwm Cov Cheeb Tsam

(1) Txhim kho cov txheej txheem hlau kom tswj tau cov hlau nplaum sib nqus hauv qhov cua, kho cov ampere -tig sib npaug kom txo qis kev poob rau hauv cov khoom xws li cov roj tso tsheb hlau luam.

(2) Hloov cov yeeb nkab- hom radiators nrog corrugated roj tso tsheb hlau luam, fin- hom radiators, lossis cov kav dej kub, thiab siv cov qauv hluav taws xob tshiab los txhim kho cov cua sov kom zoo.

(3) Siv cov kiv cua yas txhim kho kom zoo dua qub thiab txo suab nrov.

(4) Siv cov hlau nplaum tiv thaiv los yog hluav taws xob tiv thaiv kom tsis txhob poob kev poob rau hauv cov roj tso tsheb hlau luam thiab siv cov khoom siv tsis yog- cov khoom sib nqus rau bundling los yog flux barriers kom txo tau txoj kev poob.

IV. Siv cov yam ntxwv ntawm kev ua hauj lwm machinery los txo qhov poob

Yog tias lub peev xwm hloov pauv hauv synchronization nrog cov khoom siv hluav taws xob, qhov tshwm sim ntawm "overcapacity" tuaj yeem raug tshem tawm lossis txo, yog li txo qhov poob. Voltage fluctuations tshwm sim vim load variations, ua rau lub tshuab ua hauj lwm ua hauj lwm sab nraum nws ntau npaum npaum li cas. Yog tias qhov hluav taws xob tau hloov kho nyob rau hauv tandem nrog load variations, ua kom lub tshuab ua hauj lwm nyob ze rau nws cov efficiency siab tshaj, tswj peb -theem tam sim no tshuav nyiaj li cas, thiab txo cov harmonics, lub zog noj yuav txo tau.

ib theem ncej transformer

GNEE Transformer Hoobkas yog qhov chaw nyob hauv Anyang City, Henan Xeev, lub npe hu ua lub hauv paus tseem ceeb transformer hauv Suav teb. Qhov chaw zoo no ua kom ntseeg tau tias lub Hoobkas GNEE tau txais txiaj ntsig los ntawm qhov chaw zoo - tsim thiab ua tiav cov saw hlau, tshem tawm cov kev txhawj xeeb ntawm cov khoom tsis txaus. Tsis tas li ntawd, qhov muaj cov neeg ua haujlwm txawj, cov kws tshaj lij, thiab lwm yam kev ua haujlwm tseem ceeb hauv thaj chaw ib puag ncig ntxiv tau lav lub sijhawm xa khoom sai ntawm GNEE lub ncoo-mounted transformers.

Cim npe nrov: 500kva ncej mounted transformer, Tuam Tshoj 500kva ncej mounted transformer manufacturers, lwm tus neeg, Hoobkas
