Ib qho -theem ncoo-mounted transformer rated peev yog 15-250 kVA. Tib-phase Pad-mounted Transformer feem ntau yog siv rau hauv qhov chaw uas ib-theem fais fab yuav tsum tau siv rau pej xeem, xws li cov khoom siv hauv tsev, thiab lwm yam, thiab nws lub peev xwm kuj tsawg dua li ibpeb-phase ncoo-mounted transformer.

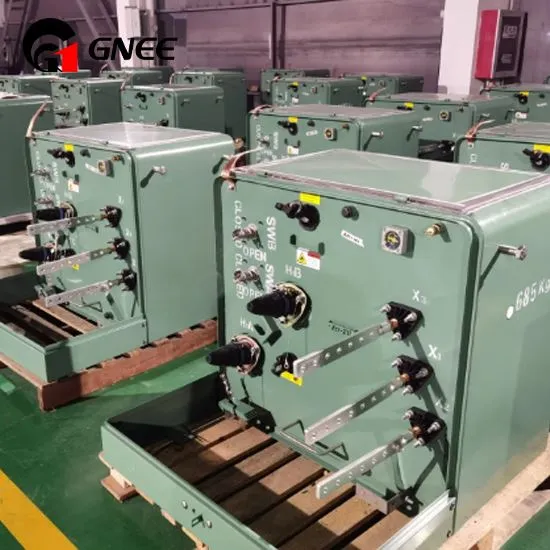

167 kVA uancoo -mounted transformeryog tsim los ntawm cov khoom siv aluminium. Nws yog nruab nrog H1A thiab H1B siab-voltage bushings, thiab peb spade-hom low-voltage bushings, txhua rooj tog nrog plaub qhov. Lub spade davhlau ya nyob twg orientation tswj lub kaum sab xis 30-degree. Qhov qis-voltage bushings yog teem los ntawm sab saum toj mus rau hauv qab li X3, X1, thiab X2. Cov kev hloov pauv no tau txuas ntxiv nrog bayonet fuses, ELSP fuses, thiab plaub - txoj haujlwm thauj khoom- tawg hloov. Qhov tshwj xeeb, lawv muaj tsib txoj haujlwm hloov pauv thiab DV hloov, ua kom yooj yim hloov pauv ntawm 14.4 kV thiab 7.2 kV circuit systems.
siv pad mount transformers
167 kVA Transformer Specifications
| Theem | Ib theem |
| Kev ntsuas fais fab | 167 kVA ua |
| Mounting | Pad Mounted |
| HV Voltage | 24940 AWG / 1440012470 AWG / 7200 AWG |
| LV voltage | 240/120 |
| HV BIL | 125 × 95 kV |
| LV IB | 30kv ua |
| Polarity | Ntxiv |
| Loadbreak hloov | plaub - txoj haujlwm |
| Cov khoom siv winding | Aluminium |
| Std. | CSA C227.3 |
| Kua dej | Mineral Roj |
| Ntau zaus | 60 Hz |
| Coj mus rhaub changer | 5- kauj ruam |
| Kua muaj peev xwm | 400L |
| Tag nrho qhov hnyav | 10 30 KG |
| HV Bshg. | Bushing zoo & ntxig |
| LV Bshg | Spade- hom nrog 4 qhov |
| Xim Xim | Seafoam Ntsuab |
| Fuses | Bayonet & ELSP fuse |
Pad Mounted Distribution Transformers Nta
- Qhov System Zoo ISO 9001 tau lees paub
- Ua raws li ANSI/IEEE lossis DOE tus qauv
- Tag nrho ntim thiab insulated; nyab xeeb thiab txhim khu kev qha;
- Tsawg poob, tsis muaj suab nrov, muaj zog tshaj qhov muaj peev xwm;
- tuaj yeem nruab nrog hloov pauv, bayonet fuse, tam sim no txwv fuse, roj qib ntsuas, ntsuas ntsuas, siab nyem valve, ntws valve, surge arrestors, thiab lwm yam;
- Txias dov phaj, stainless hlau lossis lwm yam ntaub ntawv tuaj yeem xaiv rau lub thawv;
- Cov roj ntxhia lossis FR3 roj tuaj yeem siv tau.
Cov teb ntawm daim ntawv thov
peb lub Hoobkas gNEE
Ntim & shipping
xeem creatificate
exhibition duab
neeg tuaj xyuas rooj plaub
gNEE Teams
GNEE muaj 16 xyoo dhau los ntawm kev ua haujlwm thoob ntiaj teb lub zog thiab tau pab ntau tus neeg siv khoom thoob ntiaj teb ua tiav cov haujlwm fais fab. Piv txwv li, Canada, Mexico, Panama, Ecuador, Guatemala, Honduras, Chile, El Salvador, Australia, New Zealand, Spain, Belgium, Algeria, South Africa, Ethiopia, Myanmar, Kazakhstan, thiab lwm yam. Daelim kuj muaj zoo heev tom qab- pab pawg muag khoom installation txawv teb chaws, yog li yog tias koj muaj kev xav tau transformer, koj tuaj yeem tiv tauj peb.
