Khoom Description

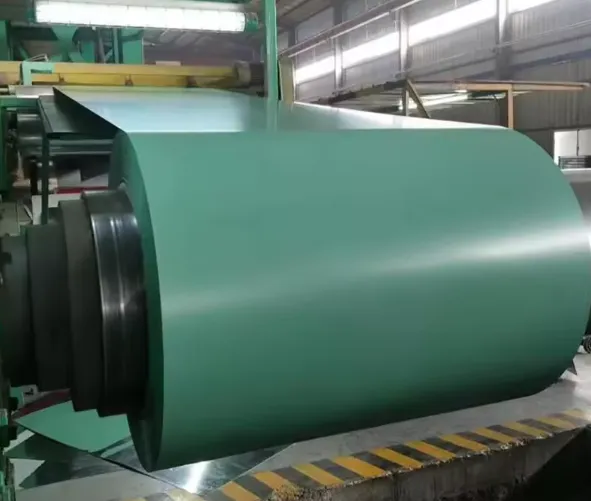

PPGI ua ntej-painted galvanized steel kaujyog ib yam khoom zoo - uas yog siv dav hauv kev tsim kho, tsheb, thiab lwm yam lag luam. Nws yog tsim los ntawm txheej txheej zinc rau saum npoo ntawm cov hlau kauj, uas txhim kho nws lub zog, durability, thiab corrosion kuj.Ib qho ntawm qhov zoo ntawm PPGI ua ntej- pleev xim rau galvanized steel kauj yog nws qhov zoo nkauj zoo nkauj. Cov txheej ua ntej - pleev xim rau sab saum toj ntawm galvanized steel kauj los ntawm ntau yam xim, textures, thiab tiav, ua rau nws yog ib qho kev xaiv zoo tshaj plaws rau cov neeg tsim qauv thiab cov kws tsim vaj tsev uas xav tau kev ua tau zoo thiab cov qauv.
Ntxiv nrog rau nws txoj kev zoo nkauj, ua ntej- pleev xim rau galvanized steel kauj kuj tseem siv tau thiab yuav tsum tau saib xyuas tsawg heev. Nws muaj kev tiv thaiv tsis sib xws tiv thaiv xeb thiab lwm yam kev tiv thaiv corrosion, uas tuaj yeem txuas ntxiv lub neej ntawm cov qauv thiab cov khoom siv.Ntxiv mus, PPGI ua ntej-painted galvanized steel kauj yog ntau yam heev thiab tuaj yeem siv rau ntau yam kev siv, xws li vov tsev, sab hauv, gutters, thiab downspouts. Nws tseem tuaj yeem tsim rau hauv ntau hom duab thiab qhov ntau thiab tsawg, ua rau nws yog qhov kev xaiv zoo rau kev tsim cov phiaj xwm kev cai.
-
Base Material Options
| Cov substrate | Standard | Txheej Mass | Cov cwj pwm tseem ceeb |
|---|---|---|---|
| Galvanized (GI). | ASTM A653 Cov Khoom Siv Hluav Taws Xob | Z60-Z275 (60-275g/m²) | Nqi -zoo, weldable |
| Galvalume (GL). | ASTM A792 Cov Lus Qhia Tshwj Xeeb | AZ60-AZ150 (60-150g / m²) | 3-5x txiav-ntug corrosion kuj |
| Zinc-Al-Mg (ZM) | TS EN 10346 | AZ100-AZ200 (100-200g / m²) | Self-healing scratches, salt spray >2,000 teev |
-
Txheej Txheej Txheej Txheem
1. Steel Substrate (0.3-3.0mm)
2. Metallic Txheej (Zinc/Al-Zn/Zn-Al-Mg)
3. Chromate Hloov Txheej Txheej (tsawg dua lossis sib npaug ntawm 15mg / m² Cr⁶⁺-dawb)
4. Primer (5-8µm): Epoxy/Polyester/Polyurethane
5. Topcoat (15-25µm): PVDF/SMP/Polyester/Siliconized Polyester
6. Clear Coat (Yeem): Anti-graffiti/UV-filter
Khoom Description
|
Txuj
|
ISO, JIS, AS EN, ASTM, thiab lwm yam
|
|
Qauv nab npawb
|
0.12-4.0mm * 600-1500mm
|
|
Dav
|
600mm-1500mm los yog raws li koj xav tau
|
|
Thickness
|
0.12mm mus rau 4mm los yog raws li koj xav tau
|
|
Ntev
|
Coil los yog raws li cov neeg siv khoom thov
|
|
Zinc txheej
|
30g / m2 txog 275g / m2
|
|
Ua siab ntev
|
±1%
|
|
Hardness
|
Softy, ib nrab nyuaj thiab nyuaj zoo los yog raws li koj xav tau
|
|
Coil Nyhav
|
3-5 Tons / kauj
|
|
Kev kho qhov saum npoo
|
Coated / Prepainted galvanized
|
|
Txheej Khoom
|
PE, SMP, HDP, PVDF
|
|
Sab saum toj txheej Thickness
|
15μm-25μm
|
|
Rov qab Coated Thickness
|
5μm-20μm
|
|
MOQ
|
3 tons, Yog tias qhov kev yuav khoom tsawg dua li peb cov MOQ, tuaj yeem hloov kho raws li koj xav tau.
|
|
Lub sij hawm xa tuaj
|
Feem ntau nyob rau hauv 7 hnub, lub sij hawm nyob ntawm tus naj npawb ntawm cov khoom.
|
|
Daim ntawv pov thawj
|
ISO, CE, thiab lwm yam
|
OEM Custom Processing Services Muaj.
Ntim thiab Shipping
Ntim thiab Shipping
FAQ
A1: Peb cov khoom tseem ceeb yog stainless hlau / carbon / galvanized phaj / ntawv, coil, round / square yeeb nkab, bar, channel, thiab lwm yam.
Q2. Koj tswj qhov zoo li cas?
A2: Mill Test Certification yog muab nrog cov khoom xa tuaj, Kev Tshawb Fawb Thib Peb muaj.
Q3. Dab tsi yog qhov zoo ntawm koj lub tuam txhab?
A3: Peb muaj ntau tus kws tshaj lij, cov kws tshaj lij, cov nqi sib tw thiab zoo tshaj plaws tom qab -dales kev pabcuam tshaj li lwm lub tuam txhab steel
Q4. Muaj pes tsawg coutries koj twb exported?
A4: Exported rau ntau tshaj 50 lub teb chaws feem ntau yog los ntawm America, Russia, UK, Kuwait, Egypt, Qaib ntxhw, Jordan, Is Nrias teb, thiab lwm yam.
Q5. Koj puas tuaj yeem muab cov qauv?
A5: Cov qauv me me hauv khw thiab tuaj yeem muab cov qauv dawb.
Customized kuaj yuav siv li 5-7 hnub.
