10 Lub Thawv Ntawm ZAM310 Hnub Ci Mounting Brackets xa tuaj rau Jordan

Peb txaus siab los tshaj tawm txoj kev xa khoom tiav ntawm10 lub thawv ntawm pebU-Profile Hnub Ci Mounting Bracketsmus rau ib qho ntawm cov thawj coj photovoltaic (PV) tivthaiv thiab steel kev txhawb nqa qauv tuam ntxhab nyob rau hauv Middle East thiab Africa (MEA) cheeb tsam.

Founded hauv 2007, tus neeg siv khoom yog ib qho kev lag luam ua ke nrog kev tsim khoom, R & D, tsim, kev tsim kho, kev ua tswv cuab, thiab kev ua haujlwm ntawm kev siv hluav taws xob- nplai, kev lag luam, thiab kev lag luam PV fais fab nroj tsuag. Raws li EPC tus neeg cog lus siab, lawv tshwj xeeb hauv kev tsim thiab kev siv cov phiaj xwm hnub ci, xa cov kev daws teeb meem zoo PV zoo thoob plaws MEA kev lag luam.

Qhov project yuav tsum tau ua kom ruaj khov, siab -kev ua tau zoo hnub ci mounting brackets muaj peev xwm txhawb nqa loj -scale photovoltaic arrays nyob rau hauv hnyav ib puag ncig. Tom qab ua tib zoo soj ntsuam cov ntaub ntawv thiab cov neeg muag khoom, tus neeg siv khoom xaiv pebZAM310 U- zoo li lub hnub ci txhawb nqa channel, qhia txog peb cov khoom zoo, kev txawj ntse, thiab cov saw hlau txhim khu kev qha.

• Cov khoom tseem ceeb Specifications muab:

Khoom siv:ZAM310 coated steel los yog pre-galvanized steel

Profile: UA Form Channel

Thickness:1.8 hli (qhov tseem ceeb), yeem 2.1 hli rau kev thauj khoom ntxiv

Ntev:5.8m ib bar

Yield zog:TSI 275

Ntim:10 thawv

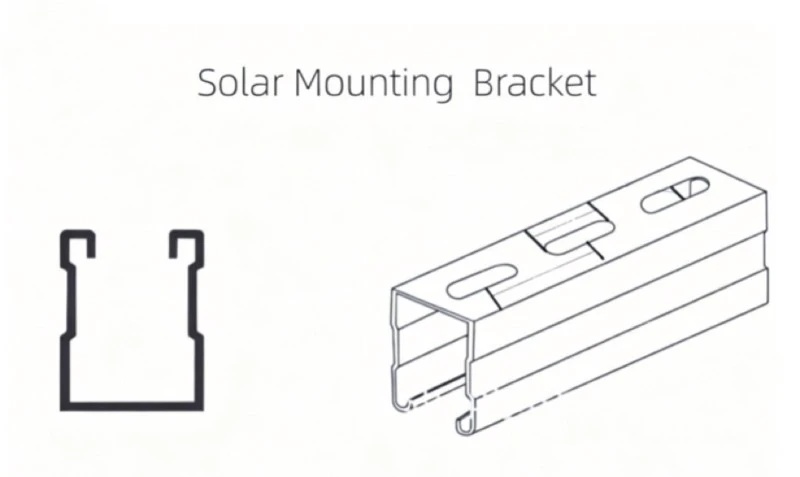

Daim duab ntawm Hnub Ci Mounting Brackets

Qhov kev qhia tshwj xeeb no tau raug xaiv los ua kom muaj lub zog muaj zog, qhov zoo tshaj plaws corrosion kuj, thiab ntev -lub sij hawm durability haum rau PV tej yaam num nyob rau hauv cov cheeb tsam uas muaj kub, av noo, thiab tej zaum yuav raug tus ntug dej hiav txwv.

• Specification ntawm Hnub Ci Mounting Brackets

Tau txais PV Mounting System Drawings

1. Superior Corrosion Resistance

Peb ZAM310 steel nta zinc- txhuas- magnesium txheej, muab kev tiv thaiv zoo tiv thaiv xeb thiab xeb. Qhov no ua kom lub hnub ci mounting cov qauv tswj kev ncaj ncees thiab kev ua tau zoo nyob rau ntau xyoo, txawm tias nyob rau hauv ib puag ncig nyuaj.

2. Txhim khu kev ua haujlwm zoo

U-profile tsim nrog FY275 lub zog xa cov khoom xa tawm zoo heev thiab khoov tsis kam, qhov tseem ceeb rau kev siv hluav taws xob- nplai thiab kev lag luam hnub ci kev teeb tsa.

3. Customized Service & Flexible Production

Peb muab cov thickness customization (1.8 hli vs 2.1 hli), ua ntej - kev xaiv fabrication, thiab kev txhawb nqa rau tus neeg siv khoom qhov project specifications. Peb lub peev xwm los lis loj - ntim xaj (10 ntim) nrog qhov zoo ib yam yog qhov tseem ceeb hauv lawv qhov kev txiav txim siab.

Los ntawm kev nug thawj zaug txog kev xa khoom zaum kawg, peb pab pawg tau koom tes nrog cov neeg siv khoom, kom ntseeg tau tias:

1.Txoj kev xaiv cov khoom sivraws li ib puag ncig thiab load xav tau

2.Ntawm - lub sijhawm xa khoomntawm 10 lub thawv ntim khoom kom tau raws li lub sijhawm ua haujlwm

3. Kev ruaj ntseg zoo, suav nrog kev kuaj xyuas qhov ntev, kev tshuaj xyuas txheej, thiab kev kuaj xyuas cov khoom siv tshuab

Tus neeg siv tau lees paub tias lub hnub ci mounting brackets ua tau raws li lawv qhov kev cia siab, muab lub hauv paus ruaj khov rau kev teeb tsa ntawm photovoltaic panels nyob rau hauv ntau yam khoom siv hluav taws xob- nplai thiab kev lag luam.

PebHnub ci Mounting Brackets (U Form)yog tsim los rau kev siv hluav taws xob- nplai, kev lag luam, thiab kev lag luam PV thoob ntiaj teb. Lawv muaj nyob rau hauvZAM310 los yog pre-galvanized steel, muab cov kev xaiv thickness ntawm 1.8 hli mus rau 2.1 hli. Standard bar ntev yog5,8m ua, nrog rau siab yield zog (FY275) kom ntseeg tau kev ua tau zoo nyob rau hauv ntau yam load.

Cov brackets no zoo tagnrho rauhauv av-mounted PV ua liaj ua teb, rooftop hnub ci arrays, solar carports, thiab industrial solar projects. Kev cai fabrication, xuas nrig ntaus, thiab slotting cov kev pab cuam muaj kom tau raws li tej yam yuav tsum tau ua.

Hauv av -mounted PV ua liaj ua teb

Hnub ci carports

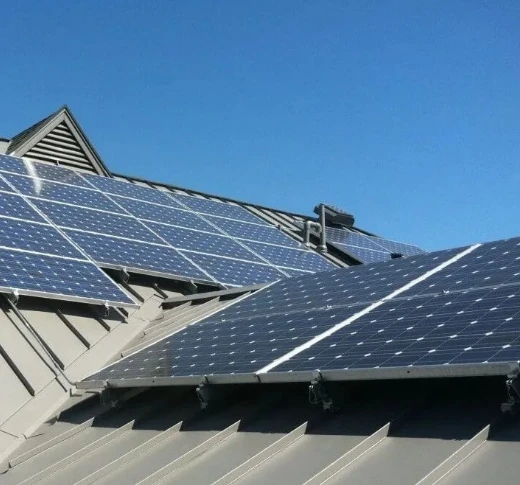

Rooftop solar arrays

Floating Solar PV Mounting System

Yog tias koj qhov project hnub ci yuav tsum tau ua haujlwm ntev, siab -cov kev daws teeb meem zoo, tiv tauj peb hnub no. Peb pab neeg tuaj yeem muab tauKev sab laj kev lag luam, cov khoom pom zoo, thiab OEM fabricationrau koj qhov project PV thoob ntiaj teb.

Kawm Ntxiv & Thov Ib Daim Ntawv Tso Cai

1. Cov khoom siv twg yog qhov zoo tshaj plaws rau hnub ci mounting brackets?

ZAM (Zinc-Aluminium-Magnesium) coated steel yog ib qho ntawm cov ntaub ntawv zoo tshaj plaws rau hnub ci mounting brackets vim nws zoo heev corrosion kuj, siab zog, thiab ntev kev pab cuam lub neej nyob rau hauv sab nraum zoov ib puag ncig.

2. Dab tsi yog qhov txawv ntawm ZAM steel thiab galvanized steel rau hnub ci mounting systems?

ZAM steel muaj zinc, txhuas, thiab magnesium, muab kev tiv thaiv corrosion zoo dua thiab tiv thaiv ntug ntau dua li cov pa galvanized steel, tshwj xeeb tshaj yog nyob rau hauv ntug dej hiav txwv thiab av noo.

3. Lub hnub ci mounting bracket yuav tsum tuab npaum li cas?

Qhov yuav tsum tau muaj thickness nyob ntawm cua load, daus load, ncua deb, thiab qhov project yuav tsum tau. Feem ntau cov thicknesses rau hnub ci mounting brackets muaj li ntawm 1.5 hli mus rau 3.0 hli, nrog 1.8 hli thiab 2.1 hli tau dav siv rau kev siv hluav taws xob- nplai tej yaam num.

4. ZAM310 hnub ci mounting brackets ntev npaum li cas?

Nyob rau hauv ib puag ncig ib puag ncig, ZAM310-coated hnub ci mounting brackets tuaj yeem muab kev tiv thaiv corrosion mus ntev thiab tsim los txhawb cov tshuab photovoltaic thoob plaws hauv lawv lub neej ua haujlwm.

5. Puas yog lub hnub ci mounting brackets haum rau ib puag ncig ntug hiav txwv?

Yog lawm. ZAM-coated steel brackets yog dav siv nyob rau hauv ntug dej hiav txwv thiab siab - thaj chaw av vim lawv superior tiv thaiv ntsev tsuag corrosion piv rau standard galvanized steel.

6. Lub zog tawm los twg yog qhov pom zoo rau cov qauv kev txhawb nqa hnub ci?

FY275 steel feem ntau yog siv rau lub hnub ci mounting systems vim hais tias nws muaj qhov sib npaug zoo ntawm cov qauv tsim, kev ua tau zoo, thiab tus nqi - ua tau zoo.

7. Lub hnub ci mounting brackets puas tuaj yeem kho raws li qhov project kos duab?

Yog lawm. Cov tuam txhab lag luam feem ntau tuaj yeem muab cov punching customized, slotting, txiav, thiab profile qhov ntev raws li cov neeg siv khoom kos duab thiab qhov project specifications.

8. Dab tsi yog cov kev siv ntawm U-zoo li lub hnub ci mounting brackets?

U- zoo li lub hnub ci kev txhawb nqa channel yog feem ntau siv hauv av- cov hnub ci ua liaj ua teb, cov tshuab photovoltaic ru tsev, hnub ci carports, thiab kev teeb tsa hnub ci.

9. Vim li cas ho nyiam ua ntej - punched solar mounting brackets?

Ua ntej- punched brackets txo ntawm - lub sijhawm teeb tsa ntawm qhov chaw, txhim kho qhov tseeb ntawm kev sib dhos, thiab pab txo nqi zog tag nrho thaum lub sij hawm tsim kho photovoltaic system.

10. Cov ntaub ntawv dab tsi yuav tsum tau txais cov lus hais rau hnub ci mounting brackets?

Yuav kom tau txais cov lus hais meej, cov neeg yuav khoom feem ntau yuav tsum tau muab cov duab kos duab, cov khoom siv, thickness, ntev, txheej specification, kom muaj nuj nqis, thiab qhov project qhov chaw.
