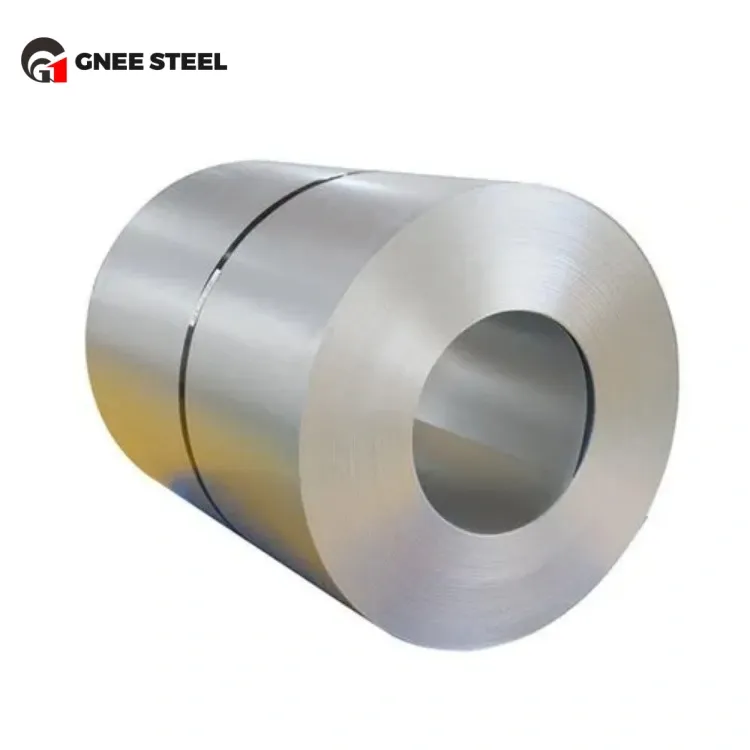

0.1-0.5mm (txog lub thickness ntawm A4 daim ntawv rau credit card) galvanized steel kauj yog ib qho ultra-thin hlau cov ntaub ntawv, uas yog galvanized rau saum npoo ntawm txias-rolled steel substrate los ntawm electroplating los yog kub-dip txheej. Nws muaj ob qho tib si lub zog ntawm cov hlau thiab cov xeb-pov thawj muaj peev xwm ntawm zinc txheej, nrog rau elongation ntawm ntau dua los yog sib npaug li 35%, thiab tuaj yeem siv los ua cov txheej txheem nyuaj.
0.1-0.5mm galvanized steel kauj parameter
|
Specifications |
Cov lus qhia tshwj xeeb |
|
Thickness ntau |
0.1mm / 0.15mm / 0.2mm / 0.3mm / 0.5mm (± 0.01mm siab precision) |
|
Zinc txheej txheej |
Electrogalvanizing (EG)｜Double-sab zinc txheej 5-30g/m² (customizable ib leeg-sided thickness sib txawv) |
|
Khoom txheem |
JIS SECC-SD｜EN DX54D+ZE｜GB/T 15675 (txhawb RoHS/REACH ntawv pov thawj) |
|
Coil loj |
Sab hauv txoj kab uas hla 508mm ｜ Sab nraud txoj kab uas hla 1200mm ｜ Dav 200-600mm (txhawb striping rau ± 0.1mm raug) |
|
Kev ua haujlwm tseem ceeb |
Elongation Ntau dua lossis sib npaug li 35% ｜ Hardness HV80-120｜ Deg roughness Ra 0.4-0.6μm |
Qhov zoo
🔬 Ultra-thin precision: 0.1mm thickness kam rau ua ± 0.003mm, ua tau raws li qhov xav tau ntawm cov khoom siv me me
🛡️ Cov Txheej Txheem Txheej Txheem: Nano- cov txheej txheem electroplating, zinc txheej thickness fluctuation Tsawg dua lossis sib npaug li ± 1.5%
🔌 Superior conductivity: nto kuj tsawg dua los yog sib npaug rau 0.1Ω / cm², haum rau electromagnetic shielding scenarios
♻️ Ntsuab thiab ib puag ncig tus phooj ywg: chromium-kev kho mob pub dawb, dhau SGS hnyav hlau kuaj pom
0.1-0.5mm Galvanized steel ntawv nyob rau hauv coil Daim ntawv thov Scenario
|
Kev lag luam |
Cov ntaub ntawv thov |
Pom zoo thickness |
Cov qib siv tau |
|
Electronics |
Txawb xov tooj shielding cover/Type-C interface shrapnel |
0.1-0.15 hli |
SECC-SD (ultra- hom duab sib sib zog nqus) |
|
Tshiab Zog |
Lithium roj teeb steel plhaub / pob ntseg khoom |
0.2-0.3 hli |
DX54D + ZE (siab elongation) |
|
Precision Parts |
Micro relay / sensor vaj tsev |
0.15-0.25 hli |
BZD01+ZE |
|
Kho mob |
Cov khoom siv phais mob / ntim kho mob |
0.3-0.5 hli |
TS EN 10346-HX180 BD |
Ntim:
Pem hauv ntej: Anti- xeb VCI zaj duab xis
Nruab nrab txheej: Npuas ncoo cushioning
Txheej txheej: Hlau strapping + ntoo thawv (export loading standard)
Kev pab txhawb nqa
Muab:
Txheej adhesion test report (cross-txiav txoj kev/bending method)
Cov ntaub ntawv MSDS kev ruaj ntseg cov ntaub ntawv
Ntsev tshuaj ntsuam 48/96 teev qhia
Cov lus nug nquag
▸ Q: Nws puas tuaj yeem hloov stainless hlau?
A: Nws tuaj yeem hloov SUS304 hauv electromagnetic shielding thiab tus nqi -sensitive scenarios, txo qhov hnyav los ntawm 30% (kev tiv thaiv corrosion yuav tsum tau soj ntsuam)
▸ Q: Yuav ua li cas tiv thaiv ultra- daim hlau nyias los ntawm deformation?
A: Nws raug nquahu kom siv cov khoom sib nqus sib nqus rau kev thauj khoom, thiab qhov nrawm nrawm yog tsawg dua lossis sib npaug li 15 zaug / feeb
