Khoom Description
DIN6923 hexagonal flange txiv ntseej yog ib qho kev siv fastener dav siv nyob rau hauv ntau yam kev lag luam. Nws muaj cov duab hexagonal flange, uas tuaj yeem muab qhov chaw txhawb nqa ntxiv thiab txhim khu kev ruaj ntseg ntawm kev sib txuas.
DIN6923 hexagonal flange ceev yog ua los ntawm ntau yam ntaub ntawv, nrog rau cov pa roj carbon tsawg, nruab nrab carbon steel, stainless hlau, thiab lwm yam. Ntawm lawv, stainless hlau txiv ntseej yog feem ntau galvanized los txhim kho lawv corrosion kuj. Tsis tas li ntawd, galvanizing tuaj yeem txhim kho qhov zoo nkauj ntawm cov txiv ntoo, ua kom pom kev zoo dua.
Cov lus qhia tshwj xeeb ntawm DIN6923 hexagonal txiv ntseej suav nrog ntau qhov ntau thiab tsawg, xws li M5, M6, M8, M10, M12, M14, M16, M20, thiab lwm yam, kom ua tau raws li qhov xav tau ntawm cov ntawv thov sib txawv.
Cov ntaub ntawv khoom
| Xov loj | M5 | M6 | M8 | M10 | M12 | |||
| D | ||||||||
| P | suab | cov hniav ntxhib | 0.8 | 1 | 1.25 | 1.5 | 1.75 | |
| zoo zum1 | / | / | 1 | 1.25 | 1.5 | |||
| zoo zum2 | / | / | / | -1 | -1.25 | |||
| c | yam tsawg kawg nkaus | 1 | 1.1 | 1.2 | 1.5 | 1.8 | ||
| d a | yam tsawg kawg nkaus | 5 | 6 | 8 | 10 | 12 | ||
| tus nqi siab tshaj | 5.75 | 6.75 | 8.75 | 10.8 | 13 | |||
| dc ua | tus nqi siab tshaj | 11.8 | 14.2 | 17.9 | 21.8 | 26 | ||
| dw ua | yam tsawg kawg nkaus | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | ||
| thiab | yam tsawg kawg nkaus | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | ||
| m | tus nqi siab tshaj | 5 | 6 | 8 | 10 | 12 | ||
| yam tsawg kawg nkaus | 4.7 | 5.7 | 7.6 | 9.6 | 11.6 | |||
| mw ua | yam tsawg kawg nkaus | 2.2 | 3.1 | 4.5 | 5.5 | 6.7 | ||
| s | max=nominal | 8 | 10 | 13 | 15 | 18 | ||
| yam tsawg kawg nkaus | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | |||
| r | tus nqi siab tshaj | 0.3 | 0.36 | 0.48 | 0.6 | 0.72 | ||
Khoom Qhia

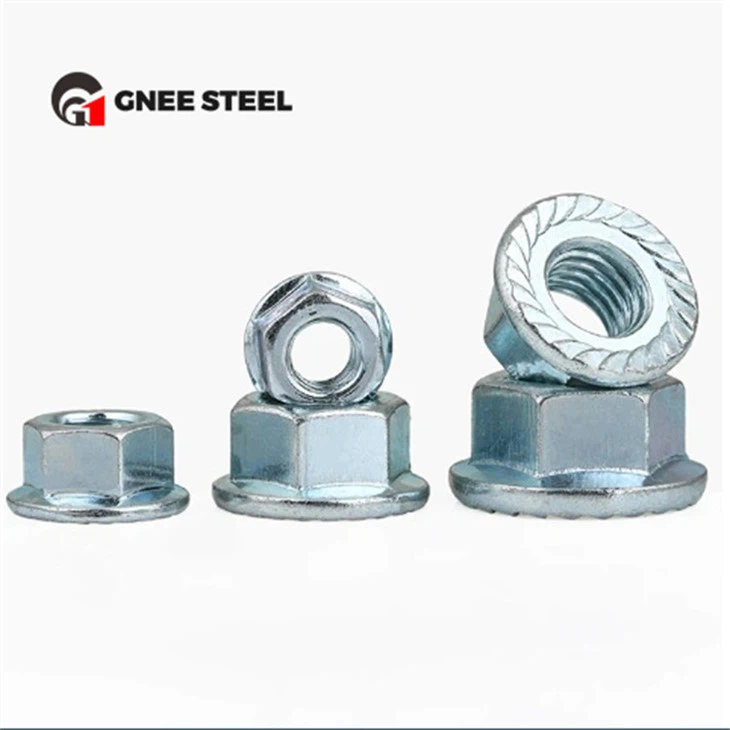

Hexagon flange ceev DIN 6923
Cov khoom kuaj
Qhov zoo ntawm Xaiv GNEE
GNEE yog lub chaw tsim khoom fastener nrog cov cuab yeej tsim khoom siab heev thiab pab pawg R & D kws tshaj lij. Txij li thaum nws tsim, lub tuam txhab muaj ntau tshaj 20 mature automated ntau lawm kab thiab sib dhos kab, nrog ib tug txhua xyoo tso zis ntau tshaj 15, 000 tons ntawm fasteners thiab kho vajtse accessories.
Cov khoom raug xa tawm mus rau ntau tshaj 60 lub teb chaws thiab cheeb tsam suav nrog Russia, Canada, Is Nrias teb, Brazil, thiab Southeast Asia.
Yog tias koj muaj lus nug, thov tsis txhob yig tiv tauj peb tam sim! Dawb Quotegi@gneesteel.com
GNEE Cov neeg siv khoom tuaj xyuas
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
1.Q: Koj puas tuaj yeem muab qhov kev pabcuam?
A: Peb tuaj yeem muab cov khoom siv hlau thiab cov khoom, thiab peb kuj tuaj yeem muab lwm cov kev pabcuam.
2.Q.Koj cov khoom puas tuaj yeem hloov kho?
A.Peb tuaj yeem ua rau feem ntau arades thiab specifications.meat koj qhov kev xav tau sib txawv.
3.Q: Koj tuaj yeem lav qhov zoo li cas?
A: Ua ntej ntau lawm, yuav tsum muaj cov qauv tsim ua ntej; ua ntej ua zaub mov xa tuaj, yuav tsum muaj kev soj ntsuam zaum kawg.
Cim npe nrov: Tuam Tshoj zinc plated din6923 hex flange ceev manufacturers, lwm tus neeg, Hoobkas
