Khoom Description
DIN444 lifting qhov muag ntsia liaj qhov rooj yog ib tug nquag siv connector, dav siv nyob rau hauv ntau yam mechanical thiab cov qauv kev sib txuas.
DIN444 lifting qhov muag bolts yog ua los ntawm carbon steel, stainless hlau, thiab lwm yam. Cov ntaub ntawv no muaj zoo txhua yam khoom thiab corrosion kuj, thiab muaj peev xwm ua tau raws li qhov yuav tsum tau siv nyob rau hauv txawv ib puag ncig. Cov txheej txheej galvanized tuaj yeem tiv thaiv kev xeb ntawm cov bolts, txuas lub neej kev pab cuam, thiab tswj kev zoo nkauj ntawm cov bolts.
Vim nws zoo corrosion kuj thiab lub zog, DIN444 lifting qhov muag bolts yog dav siv nyob rau hauv ntau yam kev lag luam teb, xws li kev tsim kho, txuas hniav, machinery manufacturing, thiab lwm yam, los xyuas kom meej stability thiab kev ruaj ntseg ntawm kev sib txuas.
Cov ntaub ntawv khoom
| Xov specification | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | (M27) | ||||
| d | |||||||||||||
| P | suab | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | |||
| b | L Tsawg dua lossis sib npaug li 125 | 16 | 18 | nees nkaum ob | 26 | 30 | 38 | 46 | 54 | 60 | |||
| 125＜L Tsawg dua lossis sib npaug rau 200 | - | - | 28 | 32 | 36 | 44 | 52 | 60 | 66 | ||||
| L＞200 | - | - | - | - | 49 | 57 | 65 | 73 | 79 | ||||
| d 1 | tus nqi siab tshaj | 5.03 | 6.03 | 8.036 | 10.036 | 12.043 | 16.043 | 18.043 | 22.052 | 24.052 | |||
| yam tsawg kawg nkaus | 5 | 6 | 8 | 10 | 12 | 16 | 18 | nees nkaum ob | nees nkaum plaub | ||||
| ua dk | Hom A, B thiab C | tus nqi siab tshaj | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 50 | ||
| Hom A | yam tsawg kawg nkaus | 10.9 | 12.9 | 16.9 | 18.7 | 23.7 | 30.4 | 38.4 | 43.4 | 48.4 | |||
| Hom B thiab C | yam tsawg kawg nkaus | 11.57 | 13.57 | 17.57 | 19.48 | 24.48 | 31.38 | 39.38 | 44.38 | 49.38 | |||
| s | Hom A | tus nqi siab tshaj | 8 | 9 | 11 | 14 | 17 | 19 | nees nkaum plaub | 28 | 30 | ||
| yam tsawg kawg nkaus | 7.52 | 8.52 | 10.3 | 13.3 | 16.3 | 18.16 | 23.16 | 27.16 | 29.16 | ||||
| Hom B thiab C | tus nqi siab tshaj | 6 | 7 | 9 | 12 | 14 | 17 | nees nkaum ob | 25 | 27 | |||
| yam tsawg kawg nkaus | 5.88 | 6.85 | 8.85 | 11.82 | 13.82 | 16.82 | 21.79 | 24.79 | 26.79 | ||||
Khoom Qhia

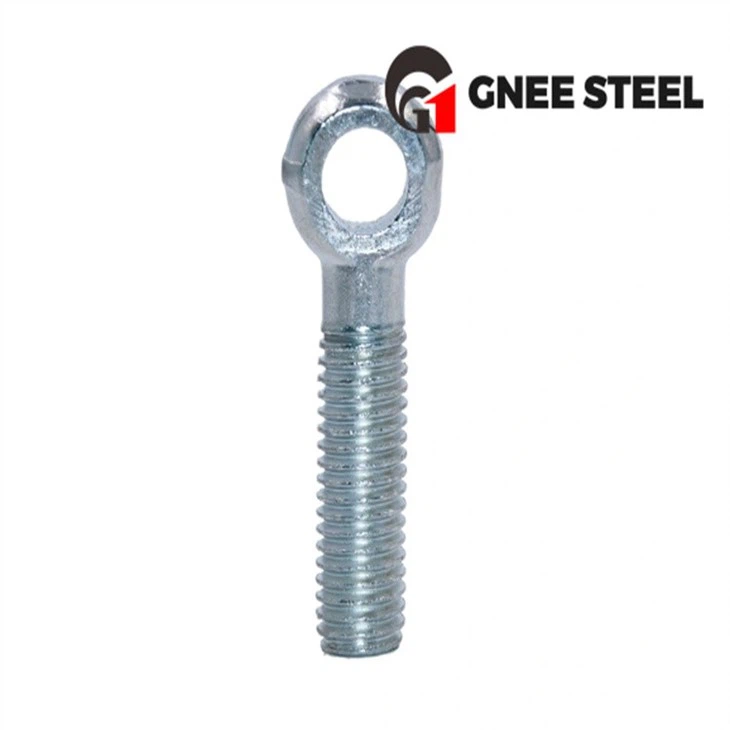

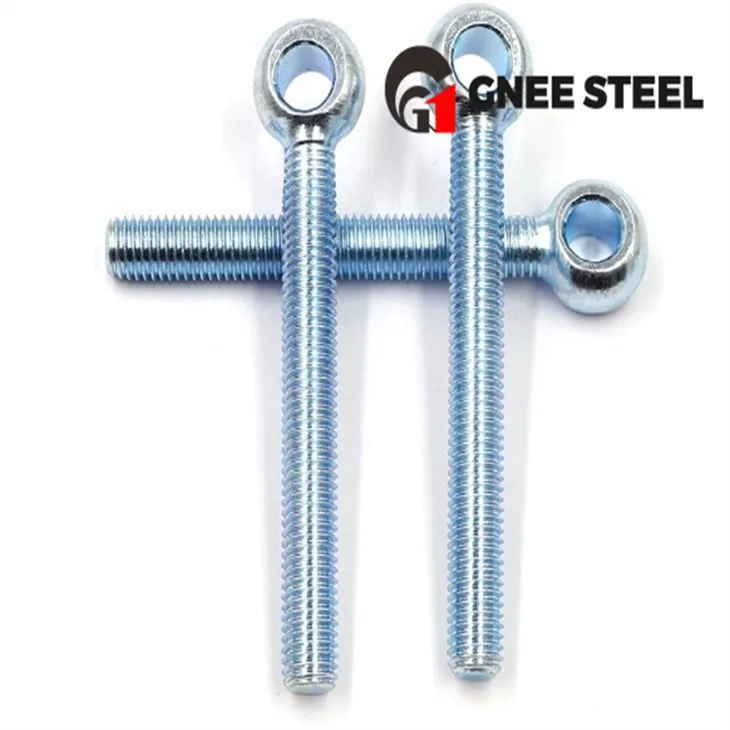

Joint Qhov muag Bolts DIN 444
Qhov zoo ntawm Xaiv GNEE
GNEE yog lub chaw tsim khoom fastener nrog cov cuab yeej tsim khoom siab heev thiab pab pawg R & D kws tshaj lij. Txij li thaum nws tsim, lub tuam txhab muaj ntau tshaj 20 mature automated ntau lawm kab thiab sib dhos kab, nrog ib tug txhua xyoo tso zis ntau tshaj 15, 000 tons ntawm fasteners thiab kho vajtse accessories.
Cov khoom raug xa tawm mus rau ntau tshaj 60 lub teb chaws thiab cheeb tsam suav nrog Russia, Canada, Is Nrias teb, Brazil, thiab Southeast Asia.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj. gi@gneesteel.com
GNEE CUSTOMER VAJTSWV
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
1.Q: Koj puas tuaj yeem muab qhov kev pabcuam?
A: Peb tuaj yeem muab cov khoom siv hlau thiab cov khoom, thiab peb kuj tuaj yeem muab lwm cov kev pabcuam.
2.Q.Koj cov khoom puas tuaj yeem hloov kho?
A.Peb tuaj yeem ua rau feem ntau arades thiab specifications.meat koj qhov kev xav tau sib txawv.
3.Q: Koj tuaj yeem lav qhov zoo li cas?
A: Ua ntej ntau lawm, yuav tsum muaj cov qauv tsim ua ntej; ua ntej ua zaub mov xa tuaj, yuav tsum muaj kev soj ntsuam zaum kawg.
