DC01 Steel yog dab tsi?
DC01 steel yog qib qis -carbon, txias- dov steel qib tau teev tseg hauv EN 10130 tus qauv, tsim nyog rau cov khoom txias- dov ca ua los ntawm cov khoom siv qis qis - carbon steel. "DC" sawv cev rau "Drawing Cold," qhia nws qhov tsim nyog rau daim ntawv thov txias txias; "01" sawv cev rau qib qib hauv cov koob, muab cov qauv tsim thiab qhov chaw zoo tsim nyog rau kev siv engineering thiab kev tsim khoom.
Cov qib steel no yog tsim los siv cov txheej txheem txias - dov, qhov kub- dov steel yog ua tiav ntawm chav tsev kub. Cov ntaub ntawv uas tshwm sim qhia cov tuab tuab, siab precision, thiab du nto tiav.

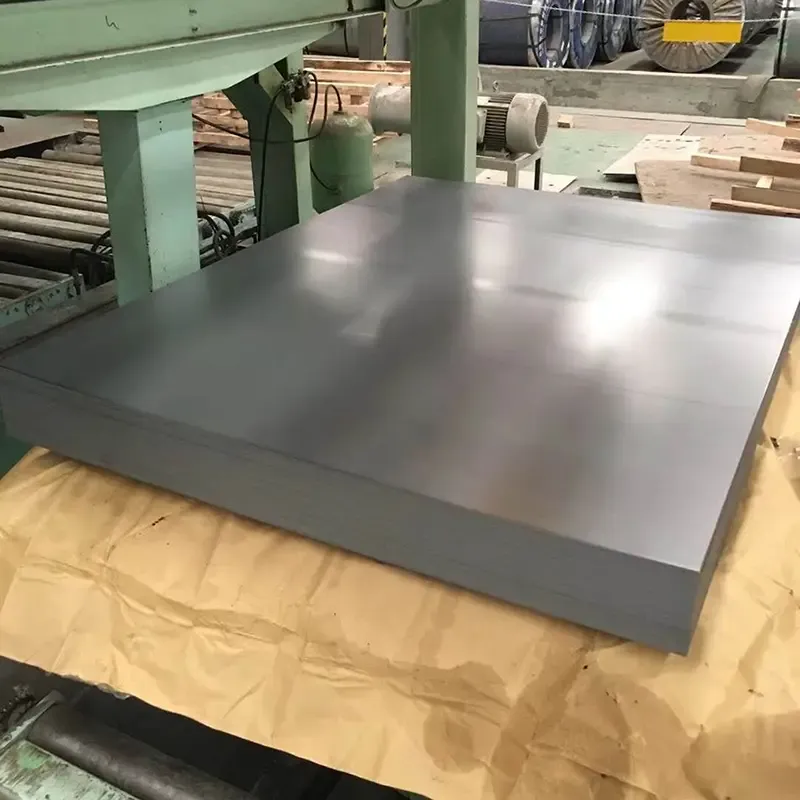

DC01 DIN EN 10130 Tsawg Carbon Steel Phaj
| Zoo | Txuj | Khoom No. | Lub npe qub |
|---|---|---|---|
| dc01 ua | TS EN 10130 | 1.0330 | TSI 12-03 |
| DC 01+ZE | TS EN 10152 | 1.0330 | TSI 12-03 |
| Kev ntsuas kev taw qhia | Yield point Rp0,2 (MPa) |
Tensil zog Rm(MPa) |
Elongation A80(hauv%) |
|---|---|---|---|
| Q | Tsawg dua los yog sib npaug li 280 | 270 – 410 | Ntau dua lossis sib npaug li 28 |
| C % |
Mn % |
P % |
S % |
|---|---|---|---|
| Tsawg dua lossis sib npaug li 0,12 | Tsawg dua lossis sib npaug li 0,60 | Tsawg dua lossis sib npaug li 0,045 | Tsawg dua lossis sib npaug li 0,045 |
Yuav Ua Li Cas Xaiv Ntawm DC01 thiab DC04?
Cov neeg yuav khoom yuav tsum xav txog:
| Kev xav tau | Pom zoo Qib |
|---|---|
| General stamping | dc01 ua |
| Tight - Radius dabtsi yog khoov | dc04 ua |
| Daim duab sib sib zog nqus | dc04 ua |
| Tus nqi- ua haujlwm tau zoo | dc01 ua |
| High nto zoo | dc04 ua |
Kev sib piv tshuaj lom neeg
Txawm hais tias ob qho tib si ua raws li EN 10130, qhov sib txawv me ntsis ntawm cov tshuaj muaj pes tsawg leeg cuam tshuam rau lub zog thiab ductility.
| Element | DC01 (%) | DC04 (max%) |
|---|---|---|
| Cov pa roj carbon (C) | 0.12 | 0.08 |
| Manganese (Mn) | 0.60 | 0.45 |
| Phosphorus (P) | 0.045 | 0.030 |
| Sulfur (S) | 0.045 | 0.030 |
