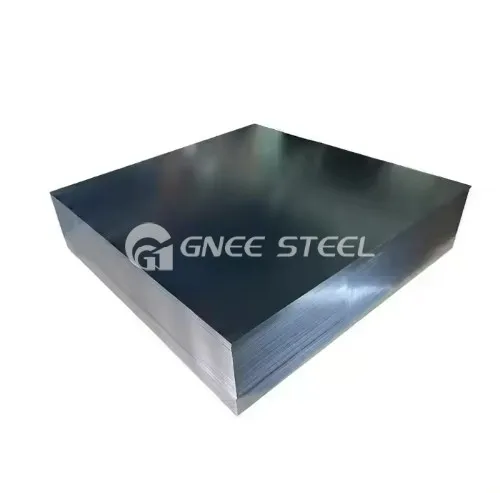

Chromium txheej steel ntawv
Chromium-coated steel ntawv, tseem hu ua Wuxi steel, yog ib hom txias-kuav los tiag-cov pa roj carbon steel ntawv los yog sawb uas yog plated nrog hlau chromium thiab chromium oxide ntawm ob sab. Cov khoom siv no tau tsim los ua tus nqi zoo dua rau cov tinplate, feem ntau yog siv rau hauv cov kaus poom thiab cov kaus poom. Daim ntawv coil hu ua chromium-coated steel sawb, thaum cov ntawv txiav yog hu ua chromium-coated steel daim hlau. GNEE Steel yog cov chaw tsim khoom zoo tshaj plaws ntawm chromium-coated steel, tinplate, thiab ntau yam txias dov coils thiab nplooj ntawv, suav nrog cov khoom siv hlau galvanized. Peb xyuas kom meej tias tag nrho peb cov khoom ua tau raws li cov qauv zoo thoob ntiaj teb thiab tuaj yeem hloov kho kom haum rau koj cov kev xav tau tshwj xeeb. Tsis txhob yig tiv tauj peb!
Chromium Coated Steel Sheet nta
Cov Xim Zoo Tshaj Adhesion: Cov txheej txheej muaj cov nplaum zoo dua piv rau tinplate, ua rau nws tsim nyog rau kev tsim DRD (kos thiab redrawn) cov kaus poom thiab cov kaus poom kua nplaum.
Zoo heev Resistance rau Thermal Denaturation: Tiv thaiv kom muaj kub-kub ci, tswj cov ruaj khov thiab tiv thaiv ib qho tsis zoo hauv cov khoom ua haujlwm.
Zoo heev los ntawm sulfurization: Cov xim hlau chromium txheej muaj cov tshuaj tiv thaiv zoo heev rau cov sulfurization, ua rau nws zoo tagnrho rau cov khoom noj muaj ntses xws li ntses.
Koj ua tau zoo heev rau cov neeg muaj kuab fab: Cov khoom ua pov thawj pom zoo tsis kam mus rau cov duab corrosion nyob rau hauv cov xim pleev xim.
Superior Alkali Resistance: chrome-plated txheej yog non-amphoteric, muab ntau dua haum rau ntim alkaline khoom xws li detergents thiab pigment dispersants.
Chromium Coated Steel SheetTxheej hnyav
|
Kev sib faib |
Indermation ntawm Tin Plating hnyav |
Tin plating nominal hnyav (g / m2) |
Yam tsawg kawg nkaus nruab nrab Tin plating hnyav (G / M2) |
|
Equitin plating (e) |
1.1/1.1 |
1.1/1.1 |
1.8 |
|
2.2/2.2 |
2.2/2.2 |
4.0 |
|
|
2.8/2.8 |
2.8/2.8 |
5.0 |
|
|
5.6/5.6 |
5.6/5.6 |
10.5 |
|
|
Sib txawv tin plating (d / a) |
2.2/1.1 |
2.2/1.1 |
2.0/0.9 |
|
2.8/1.1 |
2.8/1.1 |
2.25/0.9 |
|
|
5.6/1.1 |
5.6/1.1 |
5.05/0.9 |
|
|
2.8/2.2 |
2.8/2.2 |
2.25/2.0 |
|
|
5.6/2.2 |
5.6/2.2 |
5.05/2.0 |
|
|
5.6/2.8 |
5.6/2.8 |
5.05/2.25 |
Chromium Coated Steel SheetCov Khoom Siv Neeg Kho Tshuab thiab Cov Ntawv Thov
|
Lub npe txheem |
Nominal hardness HR30TS |
Yield zog MPa |
Daim ntawv thov |
|
T-1 |
49 |
230+/-50 |
Kev kos duab yuav tsum tau, kos cov kaus poom ironing, nozzles, cua hlob |
|
T-2 |
53 |
245+/-50 |
Rings thiab plugs, domes, kaw, ntiav draws thiab tshwj xeeb tau qhov chaw |
|
T-2.5 |
55 |
260+/-50 |
Roj teeb ntawm tes, me me tuaj yeem npog thiab lub cev |
|
T-3 |
57 |
275+/-50 |
Cov kaus poom thiab lub cev muaj peev xwm, cov hlua loj loj loj, cov kaus mom ntoo |
|
T-3.5 |
59 |
290+/-50 |
Cov kaus poom, kaw thiab yas |
|
T-4 |
61 |
340+/-50 |
Cov kaus poom, kaw thiab yas |
|
T-5 |
65 |
480+/-50 |
Cov kaus poom thiab jars |
|
Lub Npe Qauv |
Nominal hardness HR30TS |
Yield zog MPa |
Daim ntawv thov |
|
Dr -7. 5 |
71 |
520+/-50 |
Cov kaus poom thiab cov kaus poom lub cev, kos thiab rov ua cov kaus poom |
|
Dr -8 |
72 |
550+/-50 |
Haum rau npias thiab carbonated dej haus cov kaus poom thiab hau uas yuav tsum tau ib tug tej yam degree ntawm rigidity thiab lub zog |
|
DR-8.5 |
73 |
580+/-50 |
Cov kaus poom thiab cov kaus poom lub cev, kos thiab rov ua cov kaus poom |
|
Dr -9 |
75 |
620+/-50 |
Haum rau npias, cov kaus poom dej haus thiab cov kaus poom thiab cov kaus poom thiab cov kaus poom drd uas xav tau ib qho degregity ntawm rigidity thiab lub zog. |
|
DR-9M |
76 |
660+/-50 |
Haum rau npias thiab carbonated haus lub kaus mom uas yuav tsum tau muaj qee qhov kev nruj thiab lub zog |
|
Dr -10 |
79 |
700+/-50 |
Haum rau High-kawg lub raj mis lub raj mis uas yuav tsum muaj qee qhov kev ua kom nruj thiab lub zog |
Chromium Coated Steel Sheet tsum tsum
